When you use your computer, whether it’s for browsing the web, playing games, or running applications, there’s one thing that helps speed up all these processes: cache memory. Cache memory plays an essential role in ensuring that your computer runs smoothly and efficiently. It helps the processor access data quickly, which is crucial for better performance. But what exactly is cache memory, and how does it work? In this article, we’ll break down cache memory in computer architecture in a simple way, explaining its importance, types, and how it improves the overall performance of your computer.
What is Cache Memory?
Cache memory is a small, high-speed storage area located inside or close to the central processing unit (CPU) of your computer. Its primary purpose is to store frequently accessed data or instructions, so that the CPU can retrieve them faster when needed. Since the CPU can access data stored in cache memory much quicker than it can from the main memory (RAM), cache memory speeds up data processing and improves overall system performance.
How Cache Memory Works

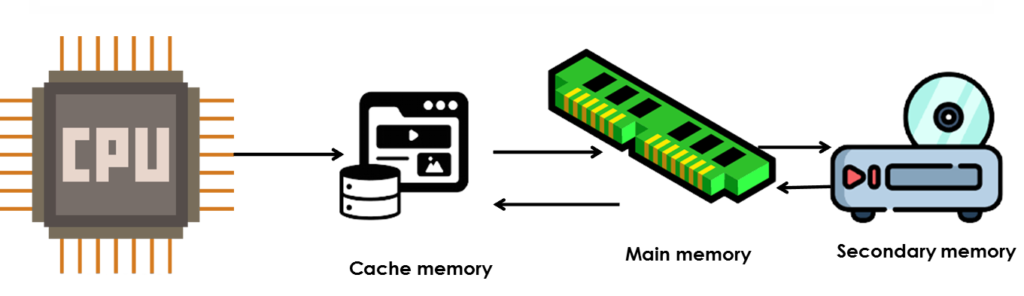

When you open a program or perform a task on your computer, the CPU needs to fetch data from memory to process it. Cache memory acts as a buffer between the CPU and the RAM. It stores copies of the data that the CPU frequently uses or that has been recently used. This means that when the CPU needs the data again, it can access it from the cache, which is much faster than fetching it from RAM.
For example, if you’re working on a document, the data you’re currently editing might be stored in cache memory, so the CPU can quickly access it and update the document. Instead of going to RAM, which is slower, the CPU can directly pull the information from cache memory, speeding up the process.
Importance of Cache Memory in Computer Architecture
Cache memory plays a vital role in modern computing because it directly impacts the performance and speed of your computer. Without it, accessing data from RAM would take significantly longer, slowing down processing speeds. Here’s why cache memory is so important:
- Faster Data Access: Cache memory stores frequently used data, allowing the CPU to access it quickly. Since cache memory is faster than RAM, it reduces the time it takes for the CPU to fetch data.
- Improved Performance: With cache memory, your computer can execute instructions faster. It acts as a high-speed intermediary between the CPU and RAM, preventing the CPU from waiting too long for data to be fetched.
- Efficient Processing: By reducing the need for the CPU to access the slower RAM repeatedly, cache memory helps optimize the processing power of your computer. It ensures that the CPU can focus on executing tasks rather than waiting for data.
- Lower Latency: Cache memory helps reduce latency, which is the time it takes for data to travel between the CPU and the memory. With lower latency, your computer can respond faster to inputs and instructions.
Types of Cache Memory
In computer architecture, there are different levels of cache memory. Each level has its own function and speed. The most common levels of cache memory are L1 Cache, L2 Cache, and L3 Cache.
1. L1 Cache (Level 1 Cache)
- Location: L1 cache is located directly on the CPU chip.
- Size: It is the smallest in size, usually ranging from 16 KB to 128 KB.
- Speed: L1 cache is the fastest cache and has the lowest latency.
- Purpose: L1 cache stores the most frequently accessed data and instructions. Since it is closest to the CPU, it helps speed up the most essential tasks.
2. L2 Cache (Level 2 Cache)
- Location: L2 cache is typically located on the CPU chip but can also be found outside the CPU, near the processor.
- Size: L2 cache is larger than L1, ranging from 128 KB to several MB.
- Speed: L2 cache is slower than L1 cache but still faster than the main RAM.
- Purpose: L2 cache stores data that is less frequently accessed than the data in L1 cache but is still important for processing. It acts as a backup for the L1 cache.
3. L3 Cache (Level 3 Cache)
- Location: L3 cache is usually located outside the CPU, shared between multiple cores in multi-core processors.
- Size: L3 cache is the largest, often ranging from 2 MB to 30 MB or more.
- Speed: L3 cache is slower than both L1 and L2 caches, but still faster than RAM.
- Purpose: L3 cache serves as a last-level cache, storing less frequently used data from the CPU and providing data to the L1 and L2 caches.
Table: Comparison of Cache Memory Types
| Cache Level | Location | Size | Speed | Purpose |
| L1 Cache | On the CPU chip | 16 KB to 128 KB | Fastest, low latency | Stores the most frequently accessed data and instructions |
| L2 Cache | On or near CPU chip | 128 KB to several MB | Slower than L1 | Stores data that is important but accessed less frequently |
| L3 Cache | Shared between cores | 2 MB to 30 MB+ | Slowest of all caches | Last-level cache, stores less frequently used data |
Cache Memory Architecture
Cache memory is organized into blocks or lines, which contain a fixed number of bits of data. The CPU searches for data in the cache by looking at its address. The cache memory architecture uses specific algorithms to decide which data should be stored in the cache and when it should be replaced.
Key Concepts in Cache Architecture:
- Cache Hit: A cache hit occurs when the CPU finds the required data in the cache. This results in fast access to the data.
- Cache Miss: A cache miss happens when the CPU cannot find the requested data in the cache, so it has to fetch it from the slower RAM or even the hard drive.
- Replacement Policy: Since the cache memory is limited in size, the CPU needs to decide which data to keep and which to replace. There are several replacement policies, including Least Recently Used (LRU), First-In-First-Out (FIFO), and Random Replacement.
- Associativity: This refers to how the cache is organized to store data. Direct-mapped cache means each block in memory has one specific location in the cache, while set-associative cache allows a block to be stored in multiple locations.
Cache Memory and Performance
The performance of cache memory is crucial to the overall speed of the computer. Here’s how cache memory improves computer performance:
1. Faster Processing Speeds
By storing the most frequently used data and instructions, cache memory reduces the need for the CPU to fetch data from slower main memory, which leads to faster processing times and better performance.
2. Multitasking Efficiency
With cache memory, the CPU can work on multiple tasks simultaneously without slowing down. As the CPU can quickly retrieve necessary data from cache, it is not burdened with fetching data from RAM for every task.
3. Better Gaming and Graphics Performance
For tasks like gaming or 3D rendering, cache memory plays an essential role in providing quick access to large chunks of data, improving graphics rendering and gaming performance. Games that require rapid data processing benefit from the high-speed nature of cache memory.
Conclusion
Cache memory is an essential component of modern computer architecture. It significantly enhances the performance of your computer by providing faster access to data and instructions. With its different levels (L1, L2, and L3), cache memory helps reduce latency, improve multitasking, and ensure that the CPU doesn’t have to wait too long to fetch data. Whether you’re using your computer for basic tasks, playing games, or running complex applications, cache memory plays a key role in providing a smoother and faster experience.
As technology continues to advance, the importance of cache memory will only grow. Newer processors are being designed with larger and faster cache memory to handle the increasing demand for speed and efficiency. Understanding how cache memory works and its role in computer architecture helps you appreciate the sophisticated design that allows your computer to work so efficiently.
